Punching Plate vs. Checker Plate: The Ultimate Technical Guide to Tow Truck Decks

When ordering a new flatbed tow truck, most fleet managers spend hours debating the chassis—should it be Isuzu, JAC, or Sinotruk?

But they often overlook the part of the truck that does the actual work: The Deck Surface (Floor).

At SPV Trucks, we believe in transparency. Instead of just giving you a sales pitch, we are going to compare the two most common deck materials—Punching Plate (Stamped) and Checker Plate (Diamond)—using raw engineering data and material science (GB/T 3277 standards).

If you want to know which deck will last longer, hold more weight, and suit your specific business (whether you tow Ferraris or Forklifts), read on.

1. Material Science: Q345B vs. Q235B

Many buyers assume “thicker is stronger.” That is a myth. The strength of a tow truck deck comes from the steel grade and the processing method.

The Challenger: Punching Plate (Our Recommendation)

• Material: We utilize Q345B High-Strength Alloy Steel.
• Tensile Strength: ≥450 MPa.
• The Process: It undergoes a “Cold Stamping” process using heavy hydraulic presses.
• The Advantage: This process creates a “Work Hardening” effect, increasing the yield strength by 20-30% compared to raw steel. Even with a thickness of 3-6mm, it offers superior fatigue resistance against the dynamic stress of loading cars.

The Traditionalist: Checker Plate (Diamond Plate)

• Material: Typically uses Q235B Low Carbon Steel.
• Tensile Strength: 375-500 MPa (but lower yield strength).
• The Process: Hot rolled or laser engraved to create the raised diamond pattern (1-2mm height).
• The Reality: While standard Q235B is decent, it lacks the structural rigidity of the stamped alloy. To achieve the same strength as the punching plate, you often need a thicker (and heavier) sheet.

Verdict: The Punching Plate uses smarter, stronger steel (Q345B), allowing it to be lighter yet tougher.

2. Weight & Efficiency: Shedding the Fat

In the towing business, weight is money. Every kilogram of your truck’s curb weight is one less kilogram you can legally tow.

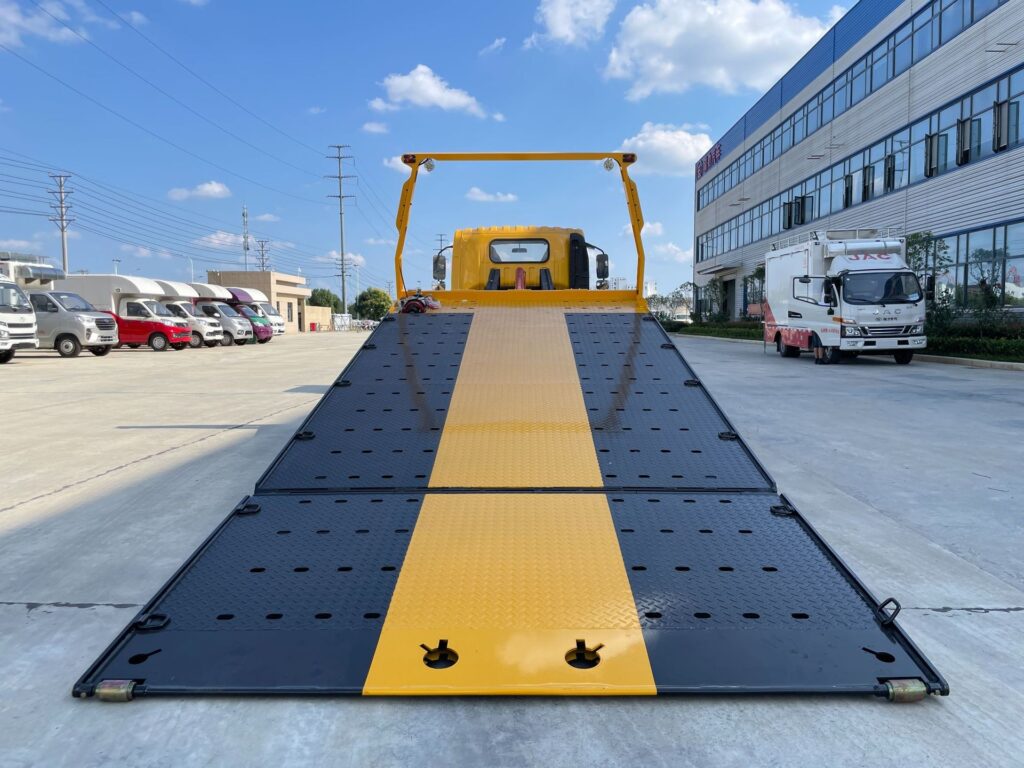

• Punching Plate: Thanks to the high-strength alloy and the structural holes, it is 15% to 20% lighter than a Checker Plate deck of the same dimensions.
• Checker Plate: Requires a thickness of 4-8mm to maintain rigidity, adding unnecessary dead weight to your chassis.

Why this matters to your wallet:

1. Fuel Economy: A lighter truck burns less diesel on every return trip.
2. Payload: You can legally carry heavier SUVs or EVs without exceeding your chassis GVW limits.

3. Safety & Anti-Slip: The “Wet” Test

This is where the biggest operational difference lies.

Checker Plate: The “Fair Weather” Friend

Technically, Checker Plate has a dry friction coefficient of 0.6-0.8. It works great on a sunny day.

• The Problem: Once the paint wears off or the deck gets wet, muddy, or oily, those flat diamond patterns turn into a slide. Water pools between the diamonds, creating a hydroplaning effect for your shoes and tires.

Punching Plate: All-Weather Grip

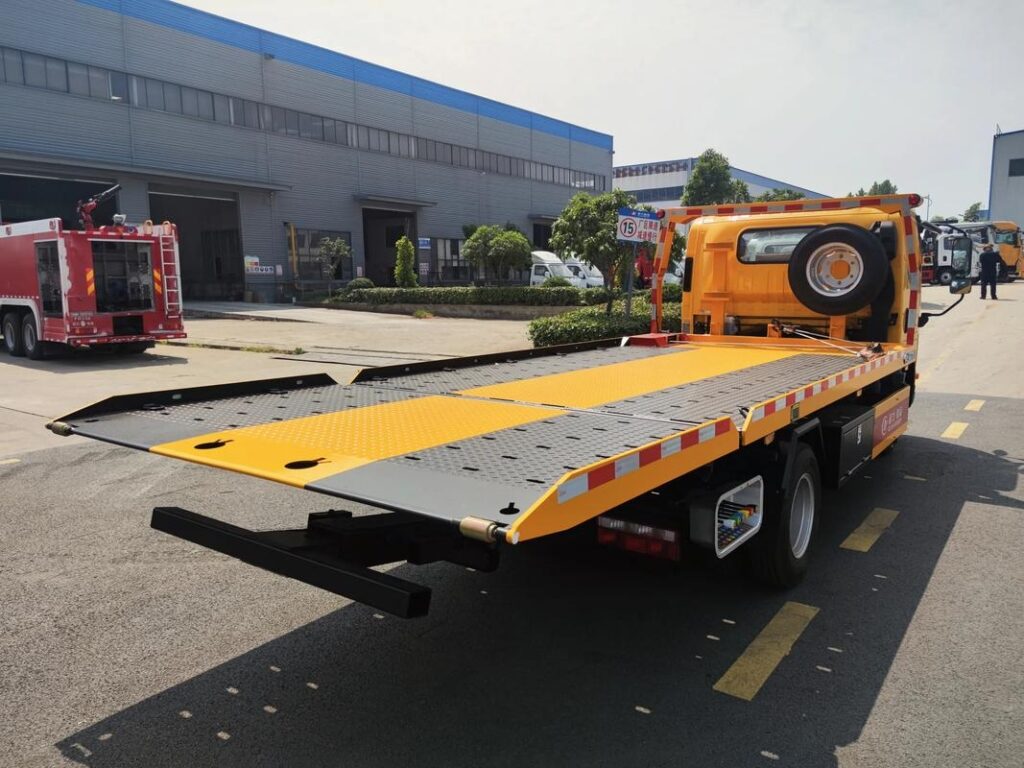

The stamping process creates raised, sharp edges around every hole.

• The “Teeth” Effect: These edges bite into tires and boots, providing superior grip even in heavy rain.
• Instant Drainage: Rain and snow wash right through the holes. No standing water means significantly less rust over time.

4. Application Scenarios: Matching the Deck to the Load

Not all tow trucks do the same job. Choosing the right deck depends entirely on what you haul.

✅ Best Use for Punching Plate (Stamped)

This is the professional standard for vehicle recovery.

1. Roadside Rescue: Essential for loading accident vehicles that may be leaking oil or fluids (the holes provide drainage).
2. Commodity Car Transport: If you transport new cars for dealerships, the holes in the punching plate allow for “Over-the-Tire” soft strapping. This is the only safe way to secure modern cars without scratching the chassis.
3. Scrap/End-of-Life Recycling: Dealing with rusty, messy junk cars requires a deck that is easy to wash down and drains instantly.

✅ Best Use for Checker Plate (Diamond)

This is the preferred choice for equipment movers.

1. Forklifts & Scissor Lifts: Small industrial wheels exert high point pressure. A solid checker plate offers a smoother rolling surface for these small wheels than a punched surface.
2. Mini Excavators: If you frequently haul machinery with steel tracks, they will chew up any deck. Checker plate is cheaper to weld and patch if a track damages the surface.

5. Busting Common Myths

Let’s clear up some misconceptions we hear from customers.

Myth #1: “Checker plate is stronger because it looks solid.”

• Fact: False. As mentioned, the Cold Work Hardening of the Punching Plate improves yield strength. A 4mm Punching Plate can often match the structural integrity of a thicker Checker Plate.

Myth #2: “Punching Plate isn’t durable.”

• Fact: Incorrect. While the raw material is exposed, we treat our Punching Plates with an 80μm Galvanized Layer or a 0.3mm Polyurethane Coating. This provides excellent corrosion resistance, often outlasting checker plates that trap water.

Summary: Comparison Table

Feature	Checker Plate (Diamond)	Punching Plate (Stamped)
Material	Q235B Low Carbon Steel	Q345B Alloy Steel
Process	Hot Rolled	Cold Stamped (One-piece)
Weight	Heavy	Light (-15% to -20%)
Anti-Slip	Good (Dry only)	Excellent (Wet & Dry)
Ideal Load	Forklifts, Scissor Lifts, Excavators	Accident Cars, New Cars, Scrap
Cost	~10-15% Cheaper	Higher Investment

Conclusion: Which One Should You Choose?

• Choose Checker Plate if: Your primary business is moving construction machinery (forklifts/excavators), or you are on a strict budget and operate in dry environments.
• Choose Punching Plate if: You are a professional towing company handling roadside recovery, luxury car transport, or scrap. You want a lighter truck with maximum safety and rust resistance. (Highly Recommended for Fleet Owners)

🚛 Want to see the difference yourself?

We can send you close-up videos of both deck materials so you can feel the quality.

• Browse Our Flatbed Models: Rollback Tow Truck

(Note: Technical data referenced from GB/T 3277-2017 and JB/T 9015-2011 industry standards.)
